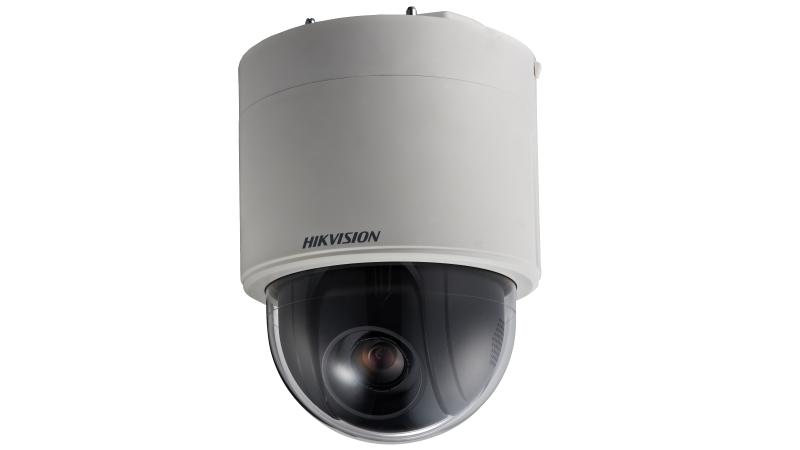

5-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| Shutter Speed |
PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Zoom | 25× optical, 16 × digital |
| Lens | |
| Focal Length | 4.8 mm to 120 mm, 25 × optical |
| FOV |
Horizontal FOV: 57.6° to 2.5° (wide to tele) Vertical FOV: 34.4° to 1.4° (wide to tele) Diagonal FOV: 64.5° to 2.9° (wide to tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | F1.6 to F3.5 |
| Zoom Speed | Approx. 3.6 s (optical, wide to tele) |
| PTZ | |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | -5° to 90° (auto flip) |
| Pan Speed |
Pan manual speed: 0.1° to 250°/s Pan preset speed: 250°/s |
| Tilt Speed |
Tilt manual speed: 0.1° to 150°/s Tilt preset speed: 150°/s |
| Proportional Pan | Rotation speed can be adjusted automatically according to zoom multiples |
| Presets | 256 |
| Preset Freezing | Yes |
| Patrol Scan | 10 patrols, up to 32 presets for each patrol |
| Pattern Scan | 5 patterns, record time over 10 minutes for each scan |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Status Display | Yes |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Power-off Memory | Yes |
| Video | |
| Frame Rate |
50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080) |
| Network | |
| Protocols | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| Image | |
| Image Settings | AGC, white balance |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable privacy masks |
| Regional Focus | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| Alarm | 2 alarm inputs, 1 alarm output |
| RS-485 |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
| General | |
| Power | 24 VAC, max. 18 W |
| Dimension |
DS-2AE5225T-A3(D) (Indoor): Ø 156 mm ×243 mm (6.14″ × 9.57″) DS-2AE5225T-A3(D) (In-Ceiling): Ø 156 mm ×236 mm (6.14 × 9.29″)” |
| Weight | Approx. 3 kg (6.61 Ib.) |
| Operating Condition | -10° C to 50° C (14° F to 122° F). Humidity 90% or less |
| Language | English |
