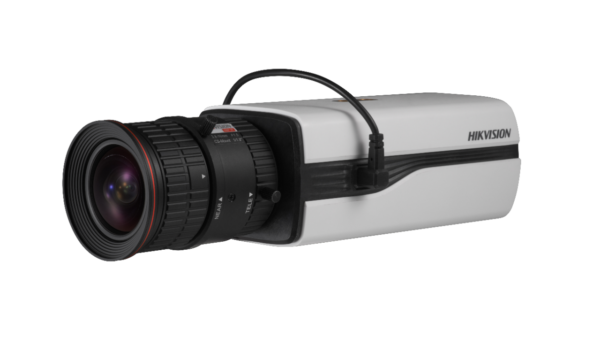

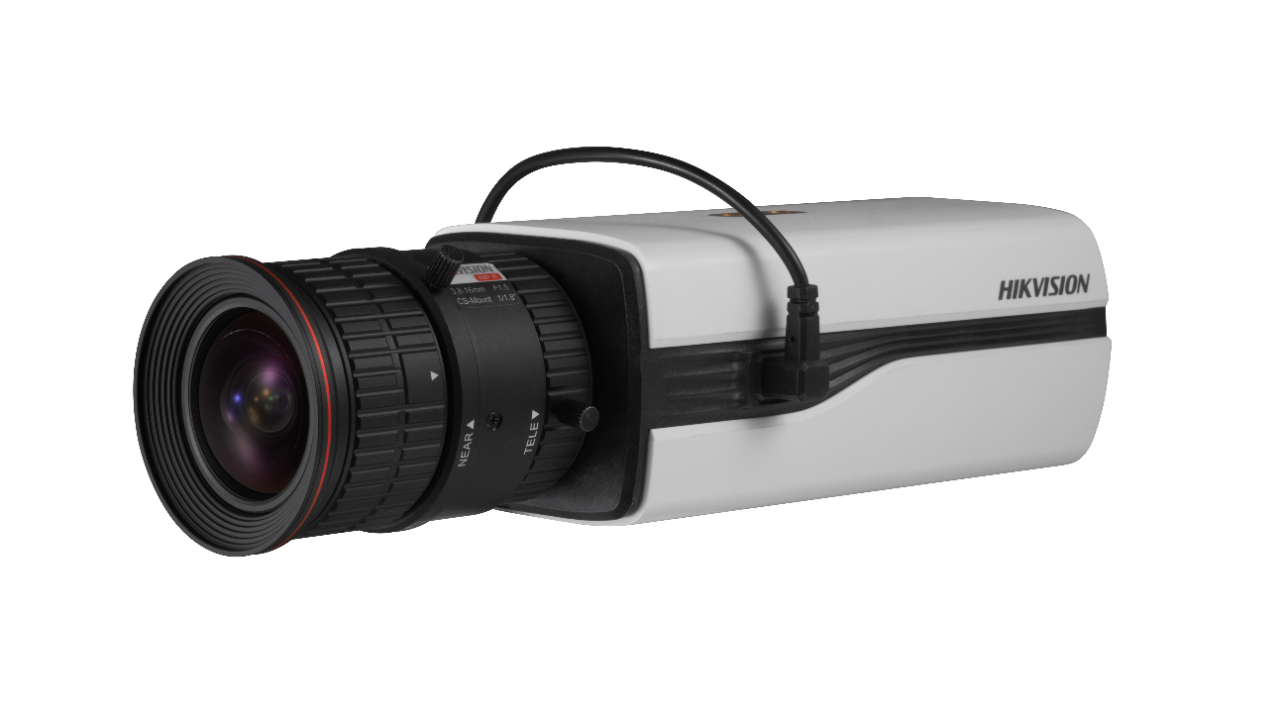

DS-2CC12D9T-E

2 MP PoC Box Camera

  • 2 MP high performance box camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Dual outputs (HDTVI and CVBS signals output simultaneously)
  • Transmits both HD video and power over the same coaxial cable

Camera
Image Sensor 2MP CMOS Image Sensor
Max. Resolution 2MP
Min. Illumination 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Day & Night Electronic
Signal System PAL/NTSC
Lens
Lens Type Fixed Lens
Lens Mount C/CS mount
Image Settings HSBLC, Digital noise reduction, Digital zoom(62x), Mirror, Defog, Defect pixel correction, SMART D-ZOOM, LSC (Lens Shading Correction)
Wide Dynamic Range (WDR) 120dB
Privacy Mask On/Off, maximum 8 zones
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
AGC Support
Interface
Video Output TVI&CVBS
Event
Motion Detection On/Off, maximum 4 zones
General
Dimension 69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”)
Weight 520 g
Operating Condition -30 °C – 60 °C (-22 °F – 140 °F), Humidity 90% or less (non-condensing)
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Power Supply 12 VDC±15%, POC
Consumption Max. 7W
IR Range 30~60m
