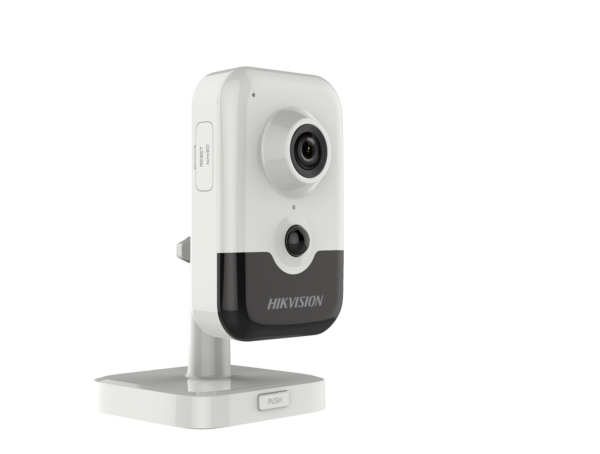

2 MP Indoor Audio Fixed PIR Cube Network Camera
| Camera | |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day &Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| WDR | DWDR |
| Lens | |
| Lens | 2 mm/2.8 mm/4 mm |
| Aperture | F2.0 |
| FOV |
2 mm: horizontal FOV: 132°, vertical FOV: 77°, diagonal FOV: 153° 2.8 mm: horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 126° 4 mm: horizontal FOV: 85°, vertical FOV: 45°, diagonal FOV: 101°
|
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 10 m |
| Wavelength | 850 nm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Main Stream |
50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
|
| Sub Stream |
50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
|
| Video Compression |
Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
|
| H.264 Type | Baseline Profile/Main Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Smart Feature-Set | |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning |
| Image | |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Wi-Fi | |
| Protocol | IEEE802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz – 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Modulation |
802.11b: DSSS 802.11g: OFDM 802.11n (20 MHz & 40 MHz): OFDM |
| Security | 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
| Transfer Rate |
11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps |
| Wireless Range | 50 meters (The performance varies based on actual environment.) |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (256 GB) local storage, ANR and NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Security | Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5) |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 |
| Web Browser |
IE8+, Chrome 31.0-44, Firefox30.0-51, Safari8.0+
|
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 input (built-in microphone), 1 output (built-in speaker) |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | Ingress protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| General | |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, flash log |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -10 °C to 40°C (14 °F to 104 °F), humidity 95% or less (non-condensing) |
| Storage Conditions | -10 °C to 40°C (14 °F to 104 °F), humidity 95% or less (non-condensing) |
| Power Supply |
DS-2CD2421G0-IW: 12 VDC ± 25%, Ø5.5 mm coaxial power plug; PoE (802.3af, class 3) DS-2CD2421G0-IDW: 12 VDC ± 25%, Ø5.5 mm coaxial power plug DS-2CD2421G0-I: 12 VDC ± 25%, Ø5.5 mm coaxial power plug; PoE (802.3af, class 3)
|
| Power Consumption and Current |
DS-2CD2421G0-IW: 12 VDC, 0.54 A, max. 6.5 W PoE (802.3af, 36 V to 57 V), 0.21 A to 0.13 A, max. 7.5 W DS-2CD2421G0-IDW: 12 VDC, 0.54 A, max. 6.5 W DS-2CD2421G0-I: 12 VDC, 0.42 A, max. 5 W PoE (802.3af, 36 V to 57 V), 0.17 A to 0.11 A, max. 6 W
|
| Material | Plastic |
| Dimensions |
Camera: 102.9 × 65.2 × 32.6 mm (4” × 2.6” × 1.3”) With package: 150 × 125 × 99 mm (5.9” × 4.9” × 3.9”)
|
| Weight |
Camera: Approx. 120 g (0.3 lb.) With package: Approx. 380 g (0.8 lb.)
|
