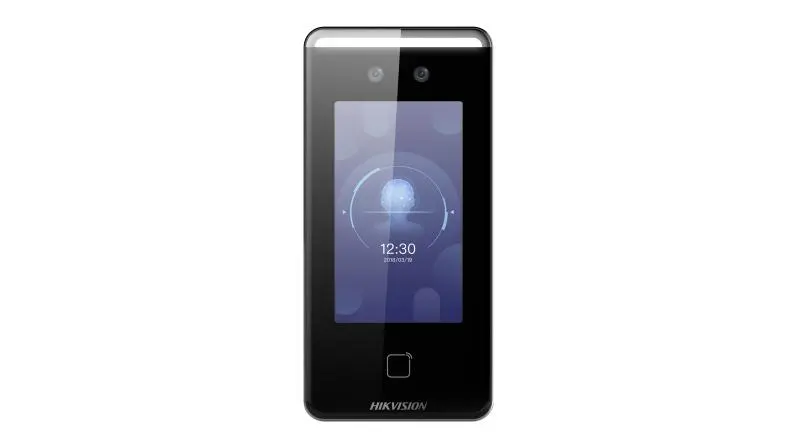

DS-K1T341AM

Value Series Face Access Terminal

Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
Max.3000 faces capacity and Max.3000 cards
Supports TCP/IP
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Supports ISUP5.0, ISAPI
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Two-way audio with client software, indoor station, and main station
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%; IP65

Display
Dimensions	4.3-inch
Type	LCD
Operation method	Capacitive touch screen
Video
FOV	HFOV = 41.5°; VFOV = 75.5°; DFOV = 87°
Pixel	2 MP (video stream: 720P)
Lens	× 2
Audio
Tone quality	Noise suppression and echo cancellation
Network
Wired network	10 M/100 M/1000 M self-adaptive
Interface
Network interface	1
RS-485	1
Wiegand	1
Lock output	1
Exit button	1
Door contact input	1
Power interface	2-pin
Capacity
Card capacity	3,000
Face capacity	3,000
Event capacity	150,000
Authentication
Card type	M1 card
Card reading frequency	13.56MHz
Face recognition duration	＜ 0.2 s
Face recognition accuracy rate	＞99%
Face recognition distance	0.3 to 1.5 m
General
button	Touch Screen
Power supply method	2 pin connecter
Power supply	12 VDC, 2 A. (power adapter not included)
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity	0 to 90% (No condensing)
Dimensions	172.5 mm × 83.2 mm × 22.7 mm (6.79″ × 3.27″ × 0.89″)
Installation	Surface mounting
Language	English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
Platform	Hik-ProConnect and HikCentral Professional
