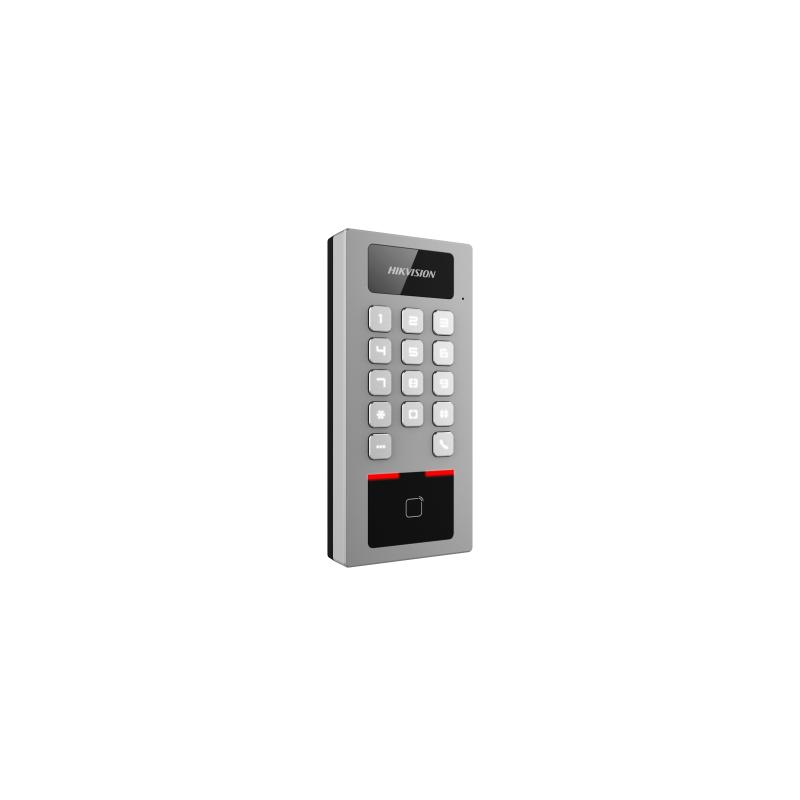

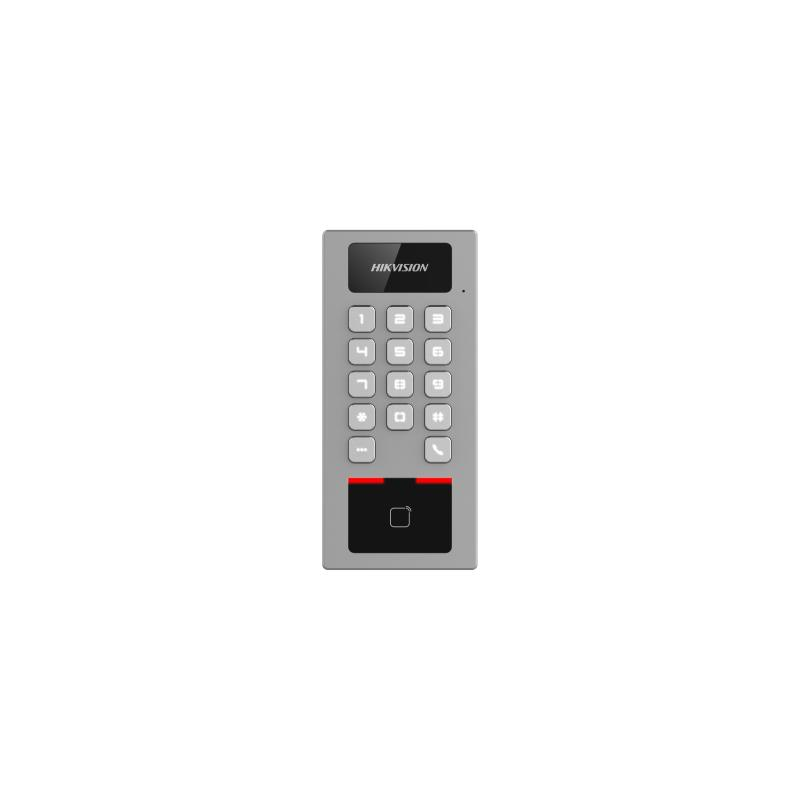

DS-K1T502DBWX

Access Control Terminal

Manage access control and intercom functions in one device
IP65 & IK09 protections, as well as increased stability with zinc alloy materials
Supports multiple authentication methods (card, PIN, etc.)
Remote control via the Hik-Connect mobile app
Connects to external access controller via Wiegand protocol
Intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
RS-485 communication for connecting external card reader and calling elevator
Supports AP mode
Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
Supports up to 256 GB SD card memory
Supports PIN settings under platform mode and local mode
Setting the priority of wired network and wireless network is available

System
Operating system	Linux
Video
Video compression standard	H.264 and H.265
Network
Wired network	10 M/100 M self-adaptive
Wi-Fi	Support
Interface
Network interface	1
Lock control	1
Exit button	1
Door contact input	1
Alarm input	1
Alarm output	1
TAMPER	1
RS-485	1
Wiegand	1 (output)
SD Card Slot	1
Capacity
Card capacity	100,000
Event capacity	300,000
Authentication
Card type	M1 card;DESfire card
Card reading distance	0 ~ 3 cm
General
Power supply	1 A (12 VDC to 24 VDC)
Power consumption	≤12 W
Working temperature	-40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F)
Protective level	IK09, IP65
Language	Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
