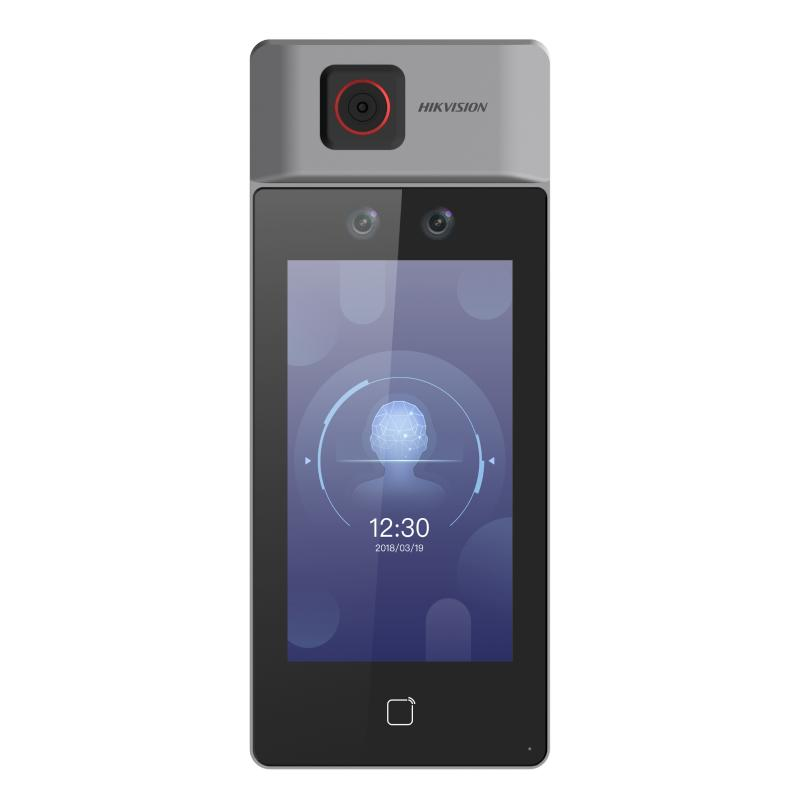

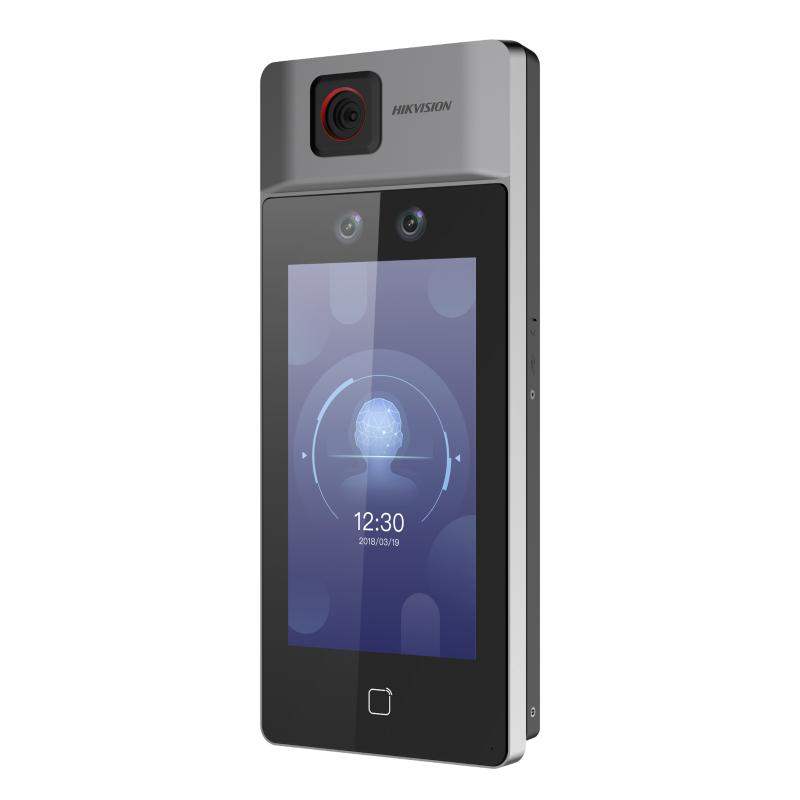

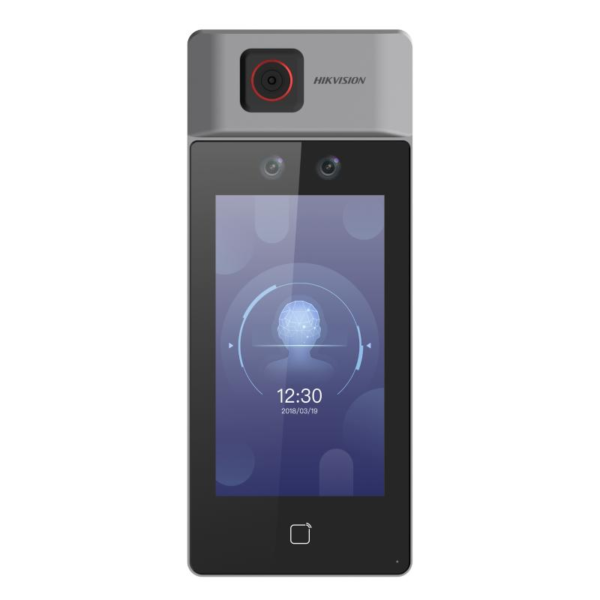

DS-K1T671TM-3XF

Ultra Face Recognition Terminals

Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
Recognition distance: 0.3 to 2 m
Face mask detection
Displays temperature measurement results on the authentication page
7-inch LCD touch screen,2 Mega pixel wide-angle lens
Built-in Mifare card reading module
Face recognition duration ＜ 0.2 s/User
face recognition accuracy rate ≥ 99%
50,000 face capacity, 50,000 card capacity, and 100,000 event capacity

System
Operating system	Linux
Temperature measurement
Temperature range	30 °C to 45 °C (86 °F to 113 °F)
Sensor	Vanadium Oxide uncooled sensor
Resolution	120 × 160
Frame rate	25 fps
Measurement accuracy	0.1 °C
Measurement deviation	± 0.5 °C, without black body calibration
Measuring distance	0.3 to 2 m
Display
Screen size	7-inch
Operation method	Touch screen
Video
Lens	Dual-lens
Resolution	2 MP
FOV	HFOV= 46°；VFOV=87°
Network
Wired network	Support, 10/100/1000 Mbps self-adaptive
Interface
Network interface	1
Lock control	1
Exit button	1
Door contact input	1
Alarm input	2
Alarm output	1
TAMPER	1
RS-485	1
Wiegand	1
USB	2
Capacity
Face capacity	50000
Card capacity	50000
Event capacity	100000
General
Power supply	12 VDC/2 A
Working temperature	0 °C to 50 °C (32 °F to 122 °F) For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
Working humidity	10 to 90% (No condensing)
Application environment	Indoor and windless environment use only
