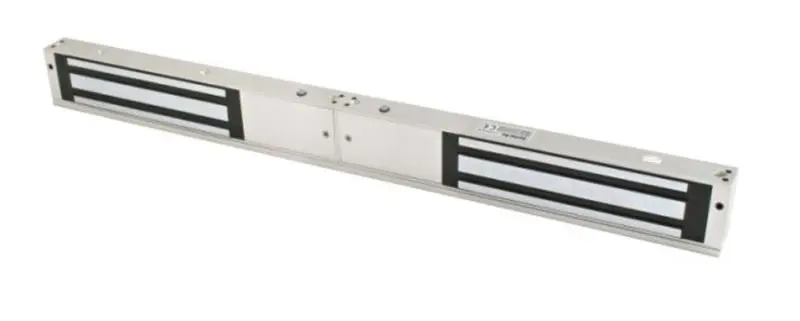

Pro Series Magnetic Lock
| General | |
| Indicator | Red (Door is Unlocked) Green (Door is Locked) |
| Power supply |
12 VDC/500 mA 24 VDC/250 mA |
| Working temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95% (Relative Humidity) |
| Dimensions |
Lock body: 480 mm × 49 mm × 25.5 mm (18.90″ × 1.93″ × 1.00″) Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5″ × 0.4″ )” |
| Weight | 4.2 kg (9.3 Lbs) |
| Material |
Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Zinc with Electroplating Operated Armature Plate: eco-friendly Zinc with Electroplating Operated |
| Thrust | Max. 272 kg (599.8 lbs) × 2 linear thrust |
| Door type | Single leaf,Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Signal output | Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
