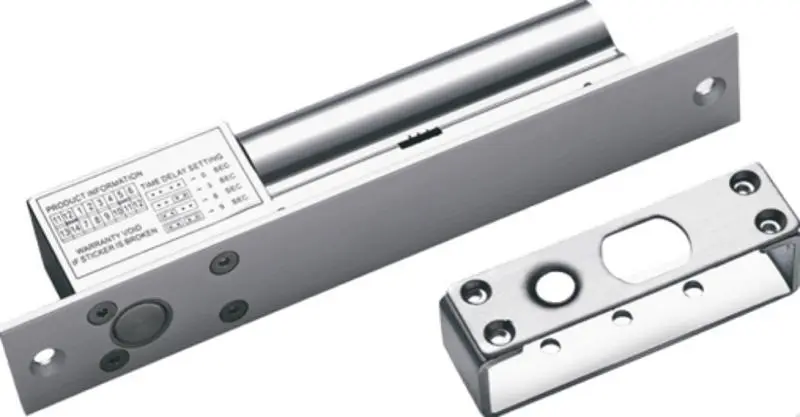

DS-K4T108

Value Series Bolt Electric Lock

Electric Bolt, 205×34×42mm (8.1×1.3×1.7″), 12VDC, ≤1.2A (Startup Current), 0.2A (Standby)
Auto-locking if induction module is detected
Suitable for wooden door, glass door, metal door
Equipped with internal voltage dependent resistor (MOV)
Signal output of door lock status (NONCCOM)
Abrasion-proof materials
Shell is made of aldural and is hard anodizing electroplated.

General
Power supply	12 VDC; ≤ 1.2 A (Startup Current) 0.2 A (Standby)
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	0 to 95 % (relative humidity)
Dimensions	Lock Body: 205 mm × 34 mm × 42mm (8.1″ × 1.3″ × 1.7″)
Weight	0.74kg (1.6 lb)
Material	Shell: Hard Anodizing Electroplating Operated
Signal output	Dry Contact Output, Max. Voltage 18V. If the wiring is COM/NC, NO Output: Locking; NC Output: Unlocking. If the wiring is COM/No, NC Output: Locking; NO Output: Unlocking;
Delay duration	0/3/6/9s optional
Door type	Wooden Door, glass door, metal Door
